HDPE Pipe Sizes: Complete Guide

HDPE (High-Density Polyethylene) pipes are widely used in water supply, gas distribution, irrigation, mining, and industrial fluid systems due to their flexibility, corrosion resistance, and long service life. One of the most important aspects of designing or purchasing an HDPE piping system is understanding HDPE pipe sizes, including standard dimensions, pressure classes, wall thickness (SDR series), and special custom sizes used in engineering projects.

This article provides a complete SEO-optimized guide covering all common HDPE pipe sizes, uncommon special sizes, dimensional standards, and selection principles used in global infrastructure projects.

1. What Are HDPE Pipe Sizes?

HDPE pipe size refers to the standardized dimensions of polyethylene pipes, usually defined by:

• Outside Diameter (OD) – the most important sizing parameter

• Wall Thickness – determines pressure resistance

• SDR (Standard Dimension Ratio) – OD ÷ wall thickness

• Nominal Diameter (DN/ID reference) – used in engineering design systems

Unlike metal pipes that may use internal diameter (ID), HDPE pipes are almost always specified by outside diameter (OD) according to international standards such as:

• ISO 4427 (water supply)

• ISO 4437 (gas distribution)

• ASTM F714 (industrial piping)

2. Standard HDPE Pipe Sizes (Metric System)

HDPE pipes are most commonly produced in metric sizes ranging from small household diameters to large municipal infrastructure pipelines.

2.1 Common Standard Diameter Range

Below is the most widely used HDPE pipe size range globally:

Small Diameter Pipes (Utility & Domestic Use)

• 16 mm

• 20 mm

• 25 mm

• 32 mm

• 40 mm

• 50 mm

• 63 mm

These sizes are typically used in:

• Residential water supply

• Drip irrigation systems

• Small agricultural pipelines

Medium Diameter Pipes (Commercial & Agricultural Use)

• 75 mm

• 90 mm

• 110 mm

• 125 mm

• 140 mm

• 160 mm

• 180 mm

• 200 mm

Applications include:

• Farm irrigation systems

• Rural water distribution

• Building water mains

• Light industrial fluid transport

Large Diameter Pipes (Municipal & Industrial Use)

• 225 mm

• 250 mm

• 280 mm

• 315 mm

• 355 mm

• 400 mm

• 450 mm

• 500 mm

• 560 mm

• 630 mm

• 710 mm

• 800 mm

• 900 mm

• 1000 mm

• 1200 mm

• 1400 mm

• 1600 mm

• 1800 mm

• 2000 mm

• 2500 mm

These large diameters are used for:

• Urban water transmission mains

• Sewage and wastewater systems

• Mining slurry pipelines

• Desalination and industrial plants

• Long-distance bulk water transport

3. SDR Series and Wall Thickness Classification

HDPE pipe size alone is not enough. The pressure rating depends on wall thickness, defined by SDR.

What is SDR?

A lower SDR means thicker pipe walls and higher pressure resistance.

3.1 Common SDR Series

4. Imperial HDPE Pipe Sizes (US Standard)

In the United States and some international industrial projects, HDPE pipes follow inch-based sizing under ASTM standards.

Common Nominal Pipe Sizes (NPS)

• ½ inch

• ¾ inch

• 1 inch

• 1¼ inch

• 1½ inch

• 2 inch

• 3 inch

• 4 inch

• 6 inch

• 8 inch

• 10 inch

• 12 inch

• 14 inch

• 16 inch

• 18 inch

• 20 inch

• 24 inch

• 30 inch

• 36 inch

• 42 inch

• 48 inch

Large infrastructure systems may go up to 120-inch HDPE pipes in special applications.

5. HDPE Pipe Size Standards by Application

Different industries prefer different size ranges depending on flow requirements and pressure conditions.

5.1 Water Supply Systems

• 63 mm – 1200 mm

• SDR 11 / SDR 17 commonly used

• Focus: durability and leak-free joints

5.2 Gas Distribution Systems

• 20 mm – 630 mm

• SDR 11 standard

• Focus: pressure safety and fusion reliability

5.3 Irrigation Systems

• 32 mm – 315 mm

• SDR 17 / SDR 21

• Focus: cost efficiency and flexibility

5.4 Mining and Slurry Transport

• 110 mm – 1600 mm

• SDR 11 / SDR 9

• Focus: abrasion resistance

5.5 Industrial Chemical Systems

• 50 mm – 1000 mm

• SDR varies depending on chemical resistance requirements

6. Special HDPE Pipe Sizes (Custom Manufacturing)

Beyond standard sizes, manufacturers also produce custom HDPE pipe dimensions for engineering projects.

6.1 Oversized Pipes (Ultra Large Diameter)

• 1800 mm

• 2000 mm

• 2200 mm

• 2500 mm

• Up to 3000 mm (project-based fabrication)

Used in:

• Mega-city water transfer systems

• Offshore desalination plants

• Flood control drainage tunnels

6.2 Thin-Wall Specialty Pipes

• SDR 33

• SDR 26

• Lightweight irrigation systems

• Temporary water supply lines

6.3 Heavy-Duty Thick Wall Pipes

• SDR 7.4 (rare industrial grade)

• High-pressure mining slurry pipelines

• Deep underground installations

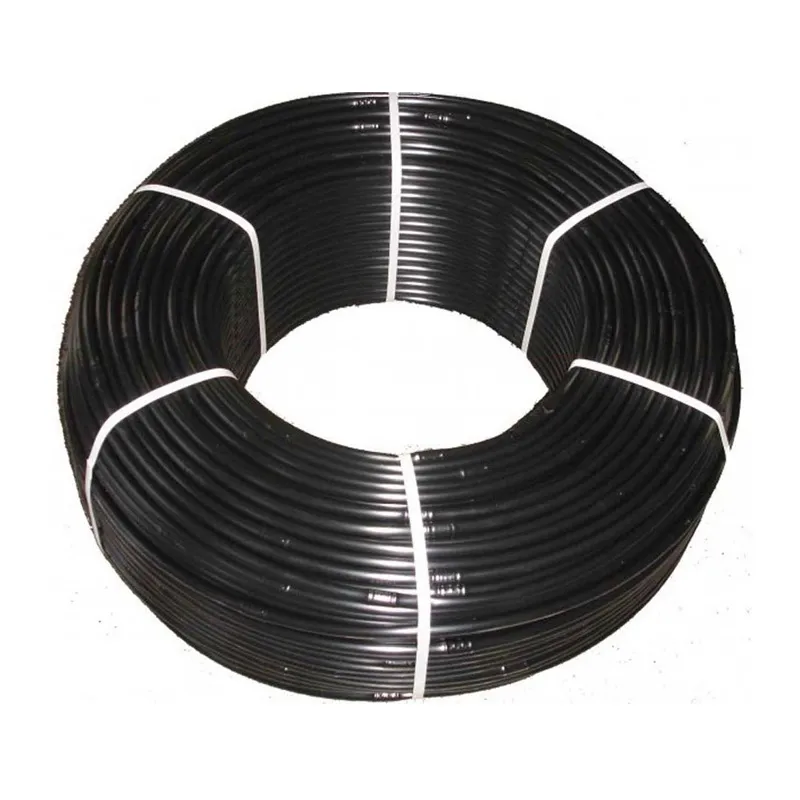

6.4 Coiled HDPE Pipes

• 16 mm – 110 mm

• Supplied in long coils (50m – 500m)

• Used for:

• Drip irrigation

• Rural water systems

• Fiber optic ducting

7. How HDPE Pipe Sizes Affect Flow Capacity

Pipe diameter directly affects flow rate and system efficiency.

Flow Principle

Q=A⋅vQ = A cdot vQ=A⋅v

Where:

• Q = flow rate

• A = cross-sectional area

• v = velocity

As diameter increases, flow capacity increases exponentially rather than linearly.

8. How to Choose the Right HDPE Pipe Size

Selecting the correct size depends on several engineering factors:

8.1 Flow Requirement

Higher water demand = larger diameter

8.2 Pressure Level

Higher pressure = lower SDR (thicker wall)

8.3 Installation Method

• Trench installation

• Horizontal directional drilling (HDD)

• Floating pipeline systems

8.4 Fluid Type

• Water

• Gas

• Chemicals

• Slurry

8.5 Cost Optimization

Smaller pipes reduce material cost but increase friction loss.

9. Advantages of Standardized HDPE Pipe Sizes

• Global compatibility of fittings and joints

• Easy system expansion and maintenance

• Standard fusion welding equipment compatibility

• Reduced engineering errors

• Predictable hydraulic performance

10. Future Trends in HDPE Pipe Sizing

The HDPE industry is moving toward:

• Ultra-large diameter pipelines (2500mm–3000mm)

• High-pressure PE100-RC materials

• Smart pipe systems with embedded sensors

• Lightweight high-strength composite HDPE structures

• Customized SDR optimization for energy efficiency

Conclusion

Understanding HDPE pipe sizes is essential for designing safe, efficient, and long-lasting piping systems. From small 16 mm irrigation pipes to massive 2500 mm municipal water mains, HDPE offers one of the widest size ranges in modern piping technology.

Standard sizes ensure global compatibility, while special custom sizes allow engineers to solve complex infrastructure challenges. Combined with SDR classification, HDPE piping systems provide unmatched flexibility across water supply, gas distribution, mining, agriculture, and industrial sectors.

As global infrastructure demand continues to grow, HDPE pipe sizing standards will keep evolving toward larger, stronger, and more intelligent pipeline solutions.
