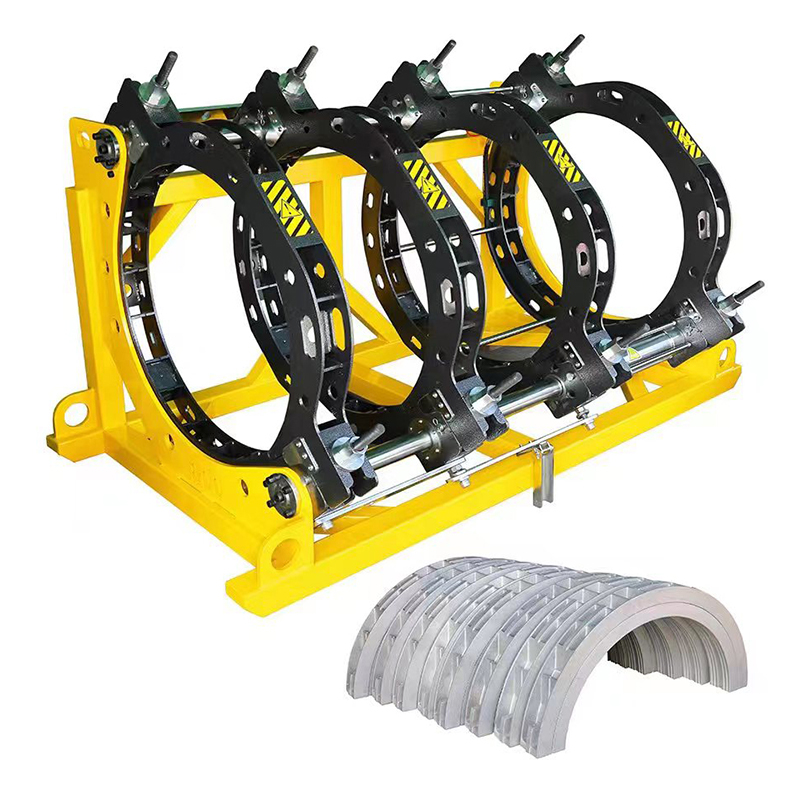

Large Diameter Butt Fusion Welding Machine 630-800mm

Place of Origin:Shandong, China

Brand Name:HAILI

Voltage:380V

Welding Area:630mm-710mm-800mm

Usage:Plastic Pipe Welding

Warranty:1 Year

After-sales Service Provided:Online support, Video technical support

Key Selling Points:High-accuracy

Applicable Industries:Building Material Shops, Manufacturing Plant

Weight (KG):1190 KG

Power (kW):17.4KW

Marketing Type:Industrial Product

Machinery Test Report:Provided

Video outgoing-inspection:Provided

Milling Cutter Head Motor Power:2.2kw

Heating Plate Power:12.5kw

Welding Range:630mm-710mm-800mm

Hydraulic Station Power:2.2kw

Heating plate temperature:270℃

Heating plate surface temperature:<±7°C

Total Power:17.4KW

1. The temperature controller and pressure regulating valve are CE certified, and the control precision can reach 0.01%.

2. Welding standards (DVS/GIS/TSG D2002-2006), complete recording of welding parameters, and real welding records without cheating.

3. The performance of the entire machine is stable, accurate, reliable, and easy to use. In pressure piping applications, the welded pipe provides superior performance as a whole pipe.

The advantage of HAILI butt fusion machine

1. The human interference is reduced

2. High power milling cutter, mirror cutter disk, strong motor, high concentricity, smooth milling

3. Using Teflon coating material, after twice coating and three processes, the solid core of the heating plate is thickened and the non-stick tube and the heat transfer are even
