PVC -U double-wall bellows/Corrugated Pipe

PVC-U double-wall bellows pipe, also called PVC-U double-wall corrugated pipe, has become one of the most widely used underground drainage and sewer pipeline systems in modern infrastructure projects. With its lightweight structure, high ring stiffness, corrosion resistance, smooth inner wall, and cost-effective installation advantages, this pipe is increasingly replacing traditional concrete pipes, cast iron pipes, and single-wall drainage systems worldwide.

China has become one of the leading global manufacturing centers for PVC-U double-wall corrugated pipes due to advanced extrusion technology, large-scale production capacity, and competitive export pricing. Municipal engineering companies, contractors, agricultural developers, industrial projects, and drainage system integrators increasingly source PVC-U corrugated pipes from China factories for large-scale infrastructure projects.

This comprehensive guide explains everything about PVC-U double-wall bellows/corrugated pipes, including:

• Product structure

• Manufacturing process

• Technical specifications

• Ring stiffness grades

• Applications

• Installation methods

• Advantages

• Competitive analysis

• Comparison with HDPE and concrete pipes

• Economic analysis

• Supplier selection

• Future market trends

PVC-U double-wall corrugated pipes are widely recognized for combining structural strength with efficient hydraulic performance. Their smooth inner wall improves water flow, while the corrugated outer wall enhances load-bearing capacity.

What Is PVC-U Double-Wall Bellows / Corrugated Pipe?

PVC-U double-wall corrugated pipe is a special structured-wall plastic pipe manufactured using unplasticized polyvinyl chloride (PVC-U) resin.

The pipe consists of:

• Smooth inner wall

• Corrugated outer wall

• Hollow middle structure

This double-wall design provides:

• High ring stiffness

• Lightweight structure

• Excellent hydraulic performance

• Material-saving efficiency

The smooth internal wall minimizes water resistance, while the corrugated outer wall improves structural strength for underground burial applications.

Product parameters for PVC -U double-wall bellows/Corrugated Pipe

• Material: PVC-U

• Ring Stiffness: SN4, SN8

• Size: 110mm ~ 500mm

• Standard: GB/T18477.1-2007

• Colors: Ivory. Other colors are also available  upon request.

Specification of our PVC -U double-wall bellows

About PVC-U

PVC-U is also called UPVC, rigid polyvinyl chloride. The full name is Unplasticized Polyvinyl Chloride. Unplasticized means "unplasticized, without plasticizer". PVC-U uses PVC as the main raw material, adds necessary additives, and is produced by extrusion molding. That is to say, it is composed of amorphous thermoplastic resin made by polymerization of vinyl chloride monomer and certain additives (such as stabilizers, lubricants, fillers, etc.). In addition to using additives, the method of blending and modification with other resins is also adopted, which makes it have obvious practical value. These resins are CPVC, PE, ABS, EVA, MBS and so on.

PVC-U double-wall corrugated pipe is a special pipe with smooth inner wall, corrugated outer wall and hollow inner and outer walls, which is processed and produced by polyvinyl chloride as the main raw material. The pipe has beautiful appearance, strong pressure resistance, small water resistance, and acid and alkali corrosion resistance. It is easy to install and transport, and has the obvious advantages of energy saving, material saving and water saving.

Advantages of our PVC -U double-wall bellows

① PVC-U double-wall bellows is manufactured by using the main raw material PVC. The internal wall is smooth and the external wall is bellows type. The hollow special pipe between the external and internal walls is mainly applied into the buried sewage and drainage system. The double-wall bellow is beautiful in appearance and special in structure with 2,4,8 and 16KN/㎡ of the ring stiffness

② The interface is connected with the flexible natural rubber sealed ring, which is characterized by firm connection, non-leaking capacity, convenient carring and simple construction, etc.

③ Lower comprehensive cost than the iron casting pipe and cement pipe. The serive life can reach 50 years. The double-wall bellows is the pipe applied most in plastic buried drainage and sewage discharge pipe in all countires in the world.

Applications of our PVC-U Double-Wall Corrugated Pipe

① Municipal engineering: applicable to drainage and sewage pipe

② Constructional engineering: applicable to rain pipe, underground drainage and sewage discharge pipe and ventilating duct of the building.

③ Electric and telecomm engineering: applicable as the protection pipe of various power cables.

④ Railway and highway communication: applicable as the protection cable of the communication cable and optical cable.

⑤ Industrial: widely applicable to sewage and water pipes for many industries such as: chemistry, medicine and environmental protection, etc.

⑥ Agricultural and farmland engineering: applied to irrigation of farmland, orchid, tea garden, forest belt, etc.

⑦ Road engineering: applicable as penetration and drainage pipes of railway, highway.

⑧ Mine filed: applicable as the ventilation and air supply and drainage pipes of mine.

⑨ Highway: the bellows can be used as the water penetration and drainage pipe of highways at alkaline land.

⑩ Applicable to the water penetration and drainage pipes of the golf course and football field.

⑪ Applicable to the drainage and sewage discharge pipes of various industries, like large-scale dock, port engineering and large-scale airport engineering, etc.

Structure of PVC-U Double-Wall Corrugated Pipe

The pipe structure is the key reason for its popularity.

1. Smooth Inner Wall

The smooth interior:

• Reduces friction

• Improves water flow

• Minimizes sediment accumulation

• Reduces blockage risk

This allows high drainage efficiency even at smaller diameters.

PVC-U pipes are known for low flow resistance because of their smooth internal surfaces.

2. Corrugated Outer Wall

The outer corrugated structure provides:

• High ring stiffness

• External pressure resistance

• Better soil load performance

The bellows design also reduces material usage while maintaining strength.

3. Hollow Middle Structure

The hollow profile:

• Reduces pipe weight

• Saves raw materials

• Improves installation convenience

This structure significantly lowers transportation and installation costs compared with solid-wall pipes.

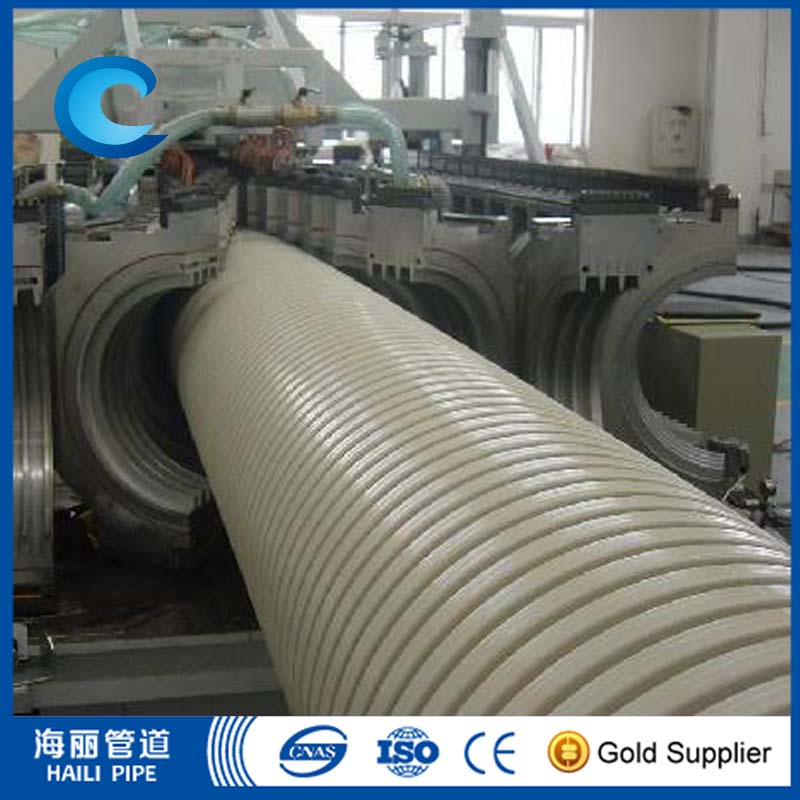

Manufacturing Process of PVC-U Double-Wall Corrugated Pipe

Modern Chinese factories use advanced extrusion production lines.

Step 1: Raw Material Mixing

PVC resin is mixed with:

• Stabilizers

• Lubricants

• Fillers

• UV-resistant additives

Step 2: Extrusion Molding

The material is heated and extruded using:

• Double-screw extrusion machines

The smooth inner wall and corrugated outer wall are formed simultaneously.

Step 3: Vacuum Calibration

Vacuum systems ensure:

• Precise dimensions

• Roundness accuracy

• Stable wall thickness

Step 4: Cooling System

Water cooling tanks stabilize:

• Pipe dimensions

• Structural integrity

Step 5: Socket Formation

Many pipes include:

• Bell-mouth socket connections

• Rubber ring sealing systems

This improves installation efficiency and leak prevention.

Step 6: Quality Inspection

Factories test:

• Ring stiffness

• Impact resistance

• Dimensional accuracy

• Sealing performance

Common Specifications of PVC-U Double-Wall Corrugated Pipe

Professional suppliers manufacture pipes in various sizes and stiffness grades.

Common Diameter Range

Typical sizes include:

• DN110

• DN160

• DN200

• DN250

• DN315

• DN400

• DN500

• DN630

• Up to DN1000

Some China factories produce even larger diameters for municipal infrastructure projects.

LESSO lists PVC-U double-wall corrugated pipe sizes from 63 mm to 1000 mm.

Ring Stiffness Grades

Common stiffness classes:

• SN2

• SN4

• SN8

• SN12.5

• SN16

Higher SN values indicate stronger load-bearing capacity.

SN4 and SN8 are among the most widely used grades in municipal drainage systems.

Common Standards

PVC-U corrugated pipes are commonly produced according to:

• GB/T18477

• ISO 21138

• ASTM F949

These standards regulate:

• Pipe dimensions

• Mechanical strength

• Testing methods

• Joint performance

Main Advantages of PVC-U Double-Wall Corrugated Pipe

1. Lightweight Structure

Compared with:

• Concrete pipes

• Cast iron pipes

• Steel pipes

PVC-U corrugated pipes are much lighter.

Advantages:

• Easier transportation

• Lower labor costs

• Faster installation

• Reduced machinery requirements

Lightweight installation is one of the most important advantages highlighted by manufacturers and industry guides.

2. Excellent Ring Stiffness

The corrugated design provides strong resistance against:

• Soil pressure

• Road loads

• Underground deformation

This makes the pipe suitable for:

• Municipal roads

• Highway drainage

• Deep burial systems

3. Corrosion Resistance

PVC-U pipes resist:

• Acidic soil

• Alkali corrosion

• Chemical wastewater

• Salt exposure

Unlike metal pipes:

• No rust occurs

• No electrochemical corrosion develops

PVC-U is widely recognized for excellent chemical resistance.

4. Smooth Water Flow

The smooth inner wall:

• Reduces friction coefficient

• Improves hydraulic efficiency

• Minimizes sediment buildup

PVC-U drainage systems often achieve better flow capacity than traditional concrete pipelines.

5. Leak-Free Connection

Rubber ring socket connections provide:

• Excellent sealing performance

• Reduced leakage risk

• Easier installation

Good sealing performance is one of the key advantages mentioned by manufacturers.

6. Long Service Life

Under normal conditions:

• Service life often exceeds 50 years

Proper installation and burial significantly extend pipe lifespan.

LESSO notes PVC-U drainage pipe systems can operate for more than 50 years under proper use.

7. Low Installation Cost

PVC-U corrugated pipes reduce:

• Labor costs

• Transportation costs

• Equipment expenses

The lightweight design significantly lowers total project cost.

8. Environmental Benefits

PVC-U pipes can be recycled and help reduce:

• Material waste

• Energy consumption

• Water leakage

Several industry sources also emphasize recyclability and environmental benefits.

Main Applications of PVC-U Double-Wall Corrugated Pipe

PVC-U double-wall bellows are widely used in infrastructure projects.

1. Municipal Drainage Systems

One of the largest application markets.

Used for:

• Urban stormwater drainage

• Rainwater systems

• Sewer pipelines

2. Highway and Road Drainage

Road infrastructure projects use corrugated pipes for:

• Culverts

• Roadside drainage

• Underground water management

3. Agricultural Irrigation and Drainage

Farm projects use PVC-U pipes for:

• Field drainage

• Irrigation channels

• Water management systems

4. Residential Drainage Networks

Residential communities use these pipes for:

• Sewage discharge

• Rainwater pipelines

• Underground utility systems

5. Industrial Wastewater Systems

PVC-U resists many industrial chemicals, making it suitable for:

• Factory drainage

• Chemical wastewater discharge

6. Mining Ventilation and Drainage

Mining systems use corrugated pipes for:

• Ventilation

• Water transportation

• Underground drainage

LESSO lists mine ventilation and industrial waste discharge among major applications.

PVC-U Corrugated Pipe vs HDPE Corrugated Pipe

This is one of the most common buyer comparisons.

PVC-U often offers:

• Better rigidity

• Lower material cost

HDPE offers:

• Better flexibility

• Higher impact resistance

PVC-U Corrugated Pipe vs Concrete Pipe

PVC-U increasingly replaces concrete in many drainage systems.

PVC-U Corrugated Pipe vs Single-Wall Corrugated Pipe

Double-wall pipes provide significantly better hydraulic performance and structural stability.

Installation Methods of PVC-U Double-Wall Corrugated Pipe

Correct installation is critical for long-term performance.

Step 1: Trench Preparation

The trench should:

• Be level

• Remove sharp objects

• Meet burial depth requirements

Step 2: Bedding Layer

Sand or fine soil bedding improves:

• Pipe stability

• Load distribution

Step 3: Pipe Connection

Most systems use:

• Socket joints

• Rubber ring sealing

Lubricants are often applied before insertion.

Step 4: Backfilling

Proper backfilling prevents:

• Pipe deformation

• Uneven pressure

Step 5: Testing

Completed systems should undergo:

• Leakage testing

• Alignment inspection

Common Buyer Concerns

Is PVC-U Pipe Safe Underground?

Yes. PVC-U pipes are specifically designed for underground drainage systems.

Can PVC-U Pipes Handle Heavy Loads?

Yes. High ring stiffness grades such as SN8 and SN16 can withstand significant soil and traffic loads.

Are PVC-U Corrugated Pipes UV Resistant?

Most outdoor-grade pipes include:

• UV stabilizers

• Carbon additives

However, long-term direct sunlight exposure should still be minimized during storage.

How Long Do PVC-U Corrugated Pipes Last?

Properly installed systems commonly last:

• More than 50 years

Economic Analysis: Why PVC-U Corrugated Pipes Continue Growing

Global infrastructure development continues driving demand because PVC-U systems offer:

• Lower installation costs

• Reduced transportation expenses

• Longer service life

• Lower maintenance cost

Compared with traditional materials, lifecycle costs are often significantly lower.

Why China Is a Leading Supplier of PVC-U Corrugated Pipes

China dominates global exports because of:

• Advanced extrusion technology

• Large-scale production capacity

• Mature raw material supply chains

• Competitive factory pricing

Chinese factories provide:

• OEM services

• Customized sizes

• Various ring stiffness grades

• Export packaging solutions

Important Factors When Choosing a Supplier

Before purchasing, buyers should evaluate:

1. Material Quality

Ensure genuine PVC-U raw material usage.

2. Ring Stiffness Certification

Verify SN ratings with testing reports.

3. Dimensional Accuracy

Poor dimensions can cause installation problems.

4. Sealing Performance

Rubber ring quality is critical.

5. Manufacturing Standards

Reliable factories comply with:

• ISO standards

• GB standards

• ASTM requirements

Common Buyer Mistakes

Choosing Ultra-Low Prices

Very cheap pipes may use:

• Recycled materials

• Poor additives

• Inconsistent wall thickness

Ignoring Ring Stiffness

Incorrect SN grade selection may cause:

• Pipe collapse

• Deformation

Poor Installation

Improper bedding and backfilling reduce service life significantly.

Future Trends of PVC-U Corrugated Pipe Industry

Emerging trends include:

• Larger-diameter pipes

• Smart drainage systems

• Improved UV resistance

• Recycled material optimization

• Sustainable infrastructure projects

As governments continue upgrading drainage infrastructure, demand for high-performance corrugated pipe systems is expected to grow steadily worldwide.

Final Conclusion

PVC-U double-wall bellows/corrugated pipe has become one of the most important modern drainage and underground infrastructure solutions because of its lightweight structure, excellent ring stiffness, smooth hydraulic performance, corrosion resistance, long service life, and cost-effective installation advantages.

Compared with traditional concrete and metal pipes, PVC-U corrugated pipes provide better transportation efficiency, lower installation costs, stronger corrosion resistance, and improved hydraulic performance. Compared with single-wall systems, the double-wall structure offers superior load-bearing capacity and smoother water flow.

China has become a leading global supplier of PVC-U double-wall corrugated pipes due to advanced manufacturing technology, large-scale production capabilities, and competitive export pricing. For municipal engineering, agricultural drainage, industrial wastewater systems, highway infrastructure, and residential sewer projects, PVC-U double-wall corrugated pipe continues to be one of the most reliable and economical piping solutions available in the global market today.
