PVC Straight Cross Pipe Fittings for indoor drain pipe

Modern indoor drainage systems require reliable pipe fittings that can efficiently connect multiple branch lines while maintaining smooth wastewater flow. Among the various drainage fittings used in residential, commercial, and institutional plumbing systems, the PVC Straight Cross Pipe Fitting is a practical solution for creating four-way pipe connections within indoor drain networks.

Designed specifically for drain, waste, and vent (DWV) systems, PVC Straight Cross Pipe Fittings provide an effective method for connecting multiple drainage branches to a central pipeline. Their lightweight construction, corrosion resistance, affordability, and ease of installation make them a popular choice among plumbing contractors, builders, and drainage system designers worldwide.

This article provides a comprehensive overview of PVC Straight Cross Pipe Fittings, including their specifications, applications, manufacturing methods, advantages, and comparison with alternative fitting materials.

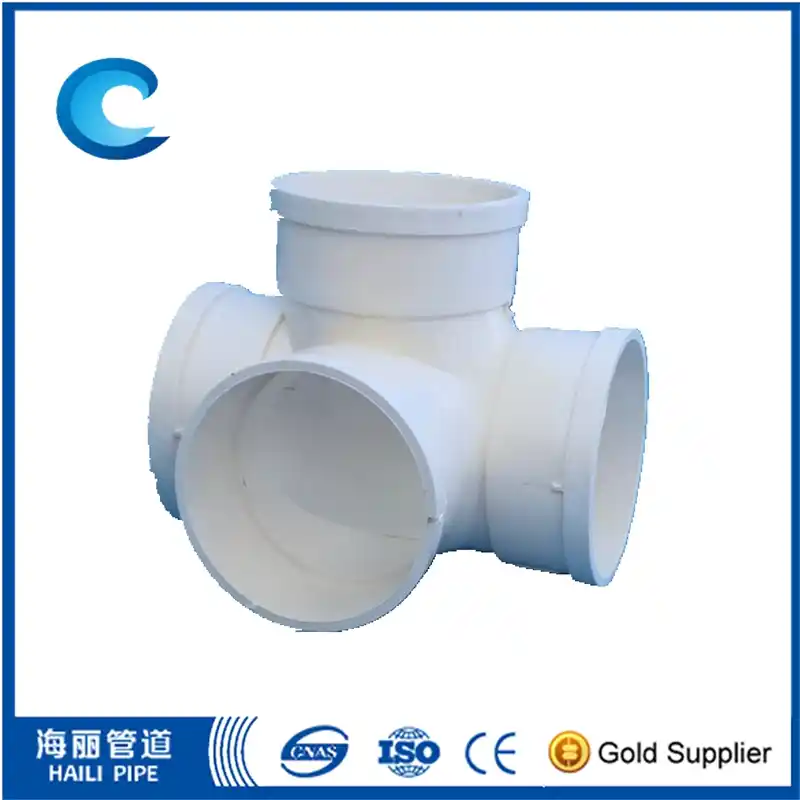

What Is a PVC Straight Cross Pipe Fitting?

A PVC Straight Cross Pipe Fitting is a four-way plumbing connector designed to join four pipes of the same diameter at right angles. The fitting forms a cross-shaped junction, allowing multiple branch lines to connect to a central drainage pipeline.

Unlike a standard tee fitting that connects three pipes, a straight cross fitting connects four pipelines simultaneously, making it ideal for complex indoor drainage layouts.

The fitting is commonly used in:

• Indoor drain systems

• Ventilation pipe networks

• Multi-fixture drainage systems

• Commercial plumbing installations

• Residential building drainage systems

Because the fitting reduces the number of individual connectors required, it helps simplify pipe layouts and improve installation efficiency.

Understanding PVC Material

PVC (Polyvinyl Chloride) is one of the most widely used thermoplastic materials in the plumbing and drainage industry.

PVC offers several advantages that make it suitable for indoor drainage applications:

• Excellent corrosion resistance

• Smooth internal surfaces

• Lightweight construction

• Long service life

• Affordable manufacturing cost

• Easy installation

PVC drainage fittings are specifically designed for gravity-flow systems and are widely used in modern construction projects.

Product Specifications

Standard Specification Table

Common Available Sizes

Key Features of PVC Straight Cross Pipe Fittings

Four-Way Connection Capability

The most important feature of a straight cross fitting is its ability to connect four pipelines within a compact space.

Benefits include:

• Reduced fitting count

• Simplified piping layouts

• Improved installation efficiency

• Better space utilization

Corrosion Resistance

PVC is highly resistant to:

• Wastewater

• Household chemicals

• Cleaning agents

• Moisture

• Soil contaminants

Unlike metal fittings, PVC does not rust or corrode.

Lightweight Construction

Compared with cast iron and steel fittings, PVC fittings are significantly lighter.

Advantages include:

• Easier transportation

• Faster installation

• Reduced labor costs

• Lower structural loading

Smooth Internal Surface

PVC's smooth inner wall minimizes flow resistance.

Benefits include:

• Improved wastewater flow

• Reduced sediment buildup

• Lower blockage risk

• Better drainage efficiency

Long Service Life

High-quality PVC cross fittings can operate reliably for:

• More than 30 years under normal conditions

• Up to 50 years in well-maintained systems

Applications of PVC Straight Cross Pipe Fittings

Residential Buildings

In residential plumbing systems, PVC cross fittings are used for:

• Multi-bathroom drainage networks

• Vent pipe connections

• Apartment plumbing systems

• Basement drainage systems

They simplify complex drainage layouts in modern homes.

Apartment Buildings

Large residential complexes often require multiple branch connections.

PVC cross fittings help connect:

• Toilet drainage lines

• Bathroom wastewater systems

• Vertical drainage stacks

Commercial Buildings

Commercial facilities frequently use cross fittings in:

• Shopping malls

• Office buildings

• Hotels

• Restaurants

These environments often require extensive branch connections within confined utility spaces.

Educational Facilities

Schools and universities utilize PVC drainage fittings because they offer:

• Low installation costs

• Reliable performance

• Long service life

Healthcare Facilities

Hospitals and clinics use PVC drainage systems due to their:

• Corrosion resistance

• Hygienic performance

• Easy maintenance

Ventilation Systems

Straight cross fittings are also used in vent pipe systems where multiple air pathways must be connected efficiently.

Advantages of Using Cross Fittings

Compared with using multiple tees and elbows, a straight cross fitting provides several benefits.

Reduced Installation Complexity

A single fitting can replace multiple components.

Benefits include:

• Faster installation

• Fewer joints

• Reduced leakage points

Space Savings

Compact fitting designs allow installation in:

• Utility shafts

• Service rooms

• Ceiling cavities

• Wall spaces

Lower Material Costs

Using one cross fitting instead of several fittings often reduces overall material expenses.

Improved System Organization

Cross fittings create cleaner and more organized pipe layouts.

How PVC Straight Cross Pipe Fittings Are Manufactured

The quality and performance of a PVC fitting depend heavily on its manufacturing process.

Step 1: Raw Material Selection

Production begins with premium-grade PVC resin.

Manufacturers add:

• Stabilizers

• Impact modifiers

• Lubricants

• Color additives

These materials improve strength, durability, and processing performance.

Step 2: Material Mixing

Raw materials are blended in high-speed mixers.

The purpose is to achieve:

• Uniform composition

• Consistent product quality

• Stable mechanical properties

Step 3: Injection Molding

Most PVC cross fittings are produced using precision injection molding technology.

The process includes:

1. Heating PVC compound

2. Melting the material

3. Injecting molten PVC into molds

4. Controlled cooling

5. Part removal

Modern molds ensure accurate dimensions and excellent surface quality.

Step 4: Cooling Process

Proper cooling is essential for preventing:

• Deformation

• Shrinkage

• Warping

Controlled cooling ensures dimensional stability.

Step 5: Trimming and Finishing

After molding:

• Excess material is removed

• Socket openings are inspected

• Surfaces are finished

This improves installation accuracy and product appearance.

Step 6: Quality Control Testing

Each production batch undergoes rigorous testing, including:

• Dimensional verification

• Impact resistance testing

• Appearance inspection

• Socket fit testing

• Material quality analysis

Only qualified fittings proceed to packaging.

Installation Process

Pipe Preparation

Before installation:

• Cut pipes squarely

• Remove burrs

• Clean all surfaces

Dry Assembly

Fit all components together before applying adhesive.

Solvent Cement Application

Apply PVC solvent cement to:

• Pipe ends

• Socket interiors

This creates a strong chemical bond.

Final Assembly

Insert pipes fully into the sockets while rotating slightly.

Curing

Allow sufficient curing time before placing the drainage system into service.

Competitive Comparison

PVC Straight Cross vs Cast Iron Cross

Winner: PVC for most indoor drainage applications.

PVC Straight Cross vs HDPE Cross

Winner: PVC for economical indoor drain systems.

PVC Straight Cross vs ABS Cross

Winner: PVC in most construction projects.

Why Contractors Choose PVC Straight Cross Fittings

Professional plumbers and contractors prefer PVC cross fittings because they provide:

Cost Efficiency

Benefits include:

• Lower material costs

• Reduced installation time

• Minimal maintenance expenses

Easy Installation

PVC systems require:

• Simple tools

• Minimal training

• Fast assembly

Reliable Performance

The fittings offer:

• Corrosion-free operation

• Leak-resistant connections

• Long-term durability

Code Compliance

Quality PVC fittings comply with:

• ASTM standards

• ISO standards

• DIN standards

• National plumbing regulations

How to Choose a High-Quality PVC Straight Cross Fitting

When selecting PVC cross fittings, consider:

Material Quality

Choose products made from virgin PVC resin for maximum durability.

Dimensional Accuracy

Accurate dimensions ensure:

• Better fit

• Easier installation

• Improved reliability

Smooth Interior Surface

Smooth internal walls improve drainage performance and reduce clogging risks.

Standard Compliance

Verify compliance with recognized international standards.

Manufacturer Reputation

Experienced manufacturers typically provide:

• Consistent quality

• Better technical support

• Reliable delivery schedules

Conclusion

The PVC Straight Cross Pipe Fitting for Indoor Drain Pipe is an essential component in modern drainage and vent systems. Designed to create efficient four-way connections, it simplifies complex plumbing layouts while providing excellent corrosion resistance, smooth flow performance, lightweight handling, and long service life.

Compared with cast iron, HDPE, and ABS alternatives, PVC cross fittings offer an outstanding balance of affordability, reliability, and installation efficiency. Whether used in residential apartments, commercial buildings, schools, hospitals, or large-scale drainage projects, PVC Straight Cross Pipe Fittings remain one of the most practical and cost-effective solutions for indoor drainage systems worldwide.
